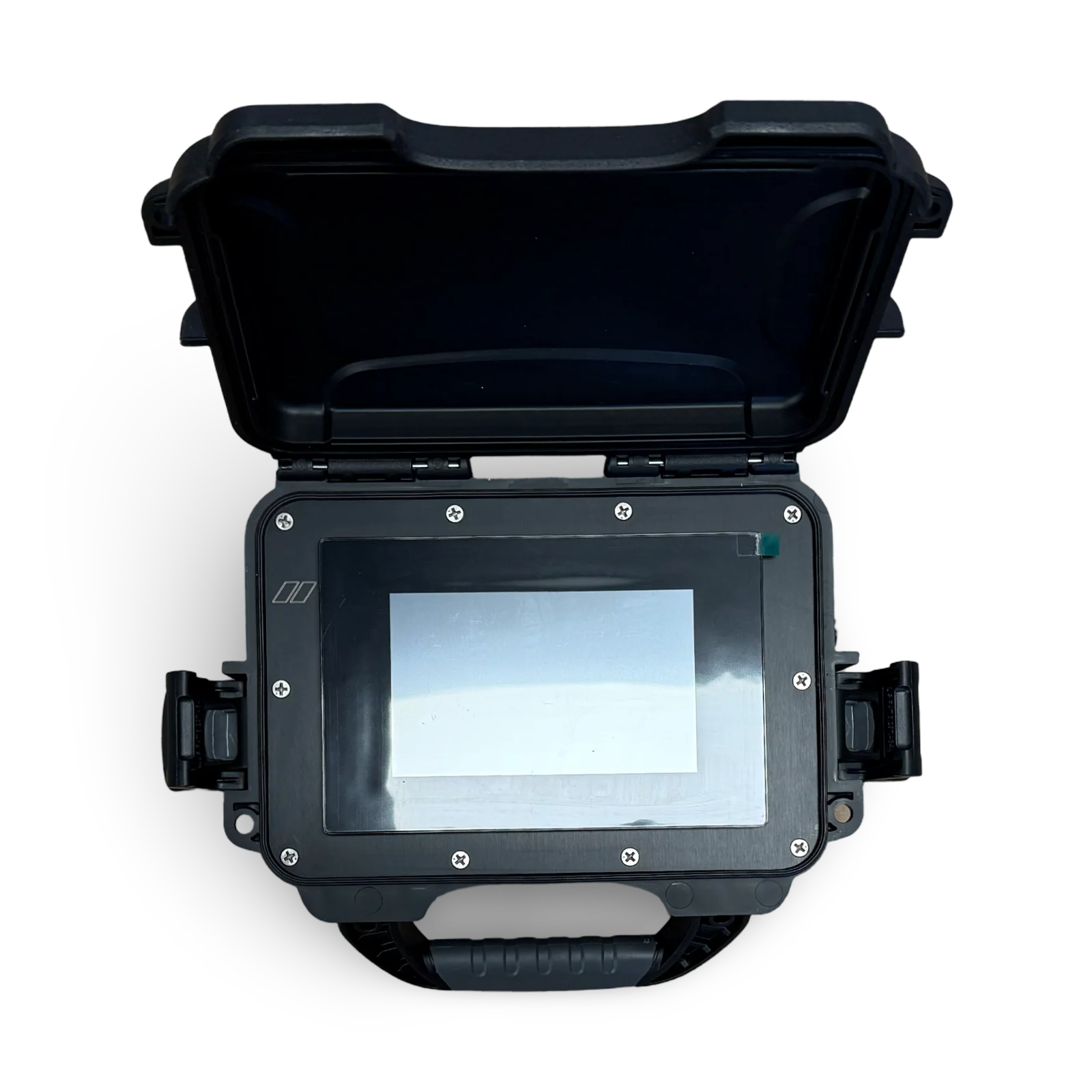

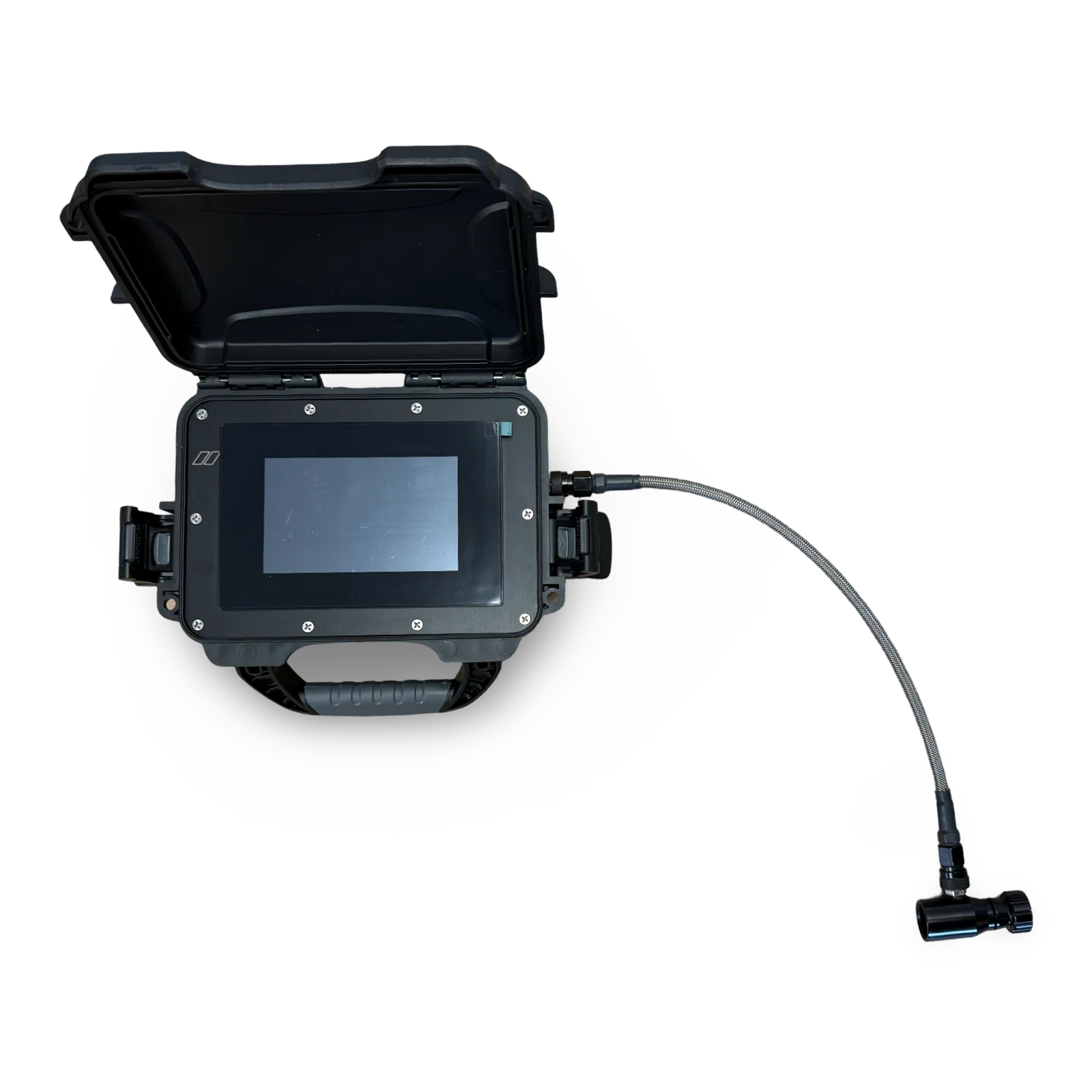

Powerhouse Air™ Mini Dyno

Precision. Portability. Performance.

The Powerhouse Air™ Mini Dyno is a precision diagnostic tool for testing and verifying tank regulator output pressure as well as monitored cycle testing to check regulator performance and health. Designed for professional technicians, paintball retailers, teams, and serious players, the Mini Dyno delivers accurate, repeatable data in a compact, portable format.

⚠️ CRITICAL USE & SAFETY WARNINGS — READ BEFORE OPERATION

⚠️ THE MINI DYNO MUST BE POWERED ON BEFORE APPLYING ANY AIR PRESSURE.

Applying air to the unit while powered off may result in inaccurate readings, internal damage, or permanent failure.

⚠️ MAXIMUM INPUT PRESSURE: 900 PSI — DO NOT EXCEED.

Input pressure above 900 PSI can damage or destroy the Mini Dyno. Damage caused by over-pressurization is not covered under warranty.

⚠️ REGULATED AIR OUTPUT ONLY.

This device is designed exclusively for regulated air output testing. Do not connect directly to unregulated tank pressure.

COMPACT, DURABLE & PORTABLE DESIGN

Portable Footprint: Compact 9” × 7” × 4” size for easy transport
Built to Last: Water- and paint-resistant construction for shop and field use

ADVANCED DIGITAL INTERFACE

7” Full-Color Touchscreen: Intuitive digital gauge and clear real-time display
Fully Adjustable Parameters: Configure testing via pop-up 10-key touchscreen:

Number of cycles
Shots per second
Valve on/off time (milliseconds)
Shot calculator
Pressure offset (calibration)
Leak-test cycle with adjustable duration

PRECISION TESTING CAPABILITIES

Test Pressure Range: 0–899 PSI
(Higher-pressure testing available — consult factory)
Real-Time Data Tracking:

First-shot pressure
Average pressure
Last-shot pressure (simulate ramping / detect shoot-down)
20-shot results display

ENHANCED FEATURES:

Leak Test Cycle: Adjustable timing for accurate leak detection

WHAT’S INCLUDED:

15” stainless braided hose
Powerhouse universal fill adapter
120V wall charger
Protective accessory travel case

WHO THE MINI DYNO IS FOR?

Gun and regulator technicians
Paintball stores and fields
Large team programs
Anyone who values verified regulator performance
(Compatible with any regulator under 900 PSI output)

POWERHOUSE TOOLS

Powerhouse Mini Tank

POWERHOUSE AIR™ D-GAS-R TOOL

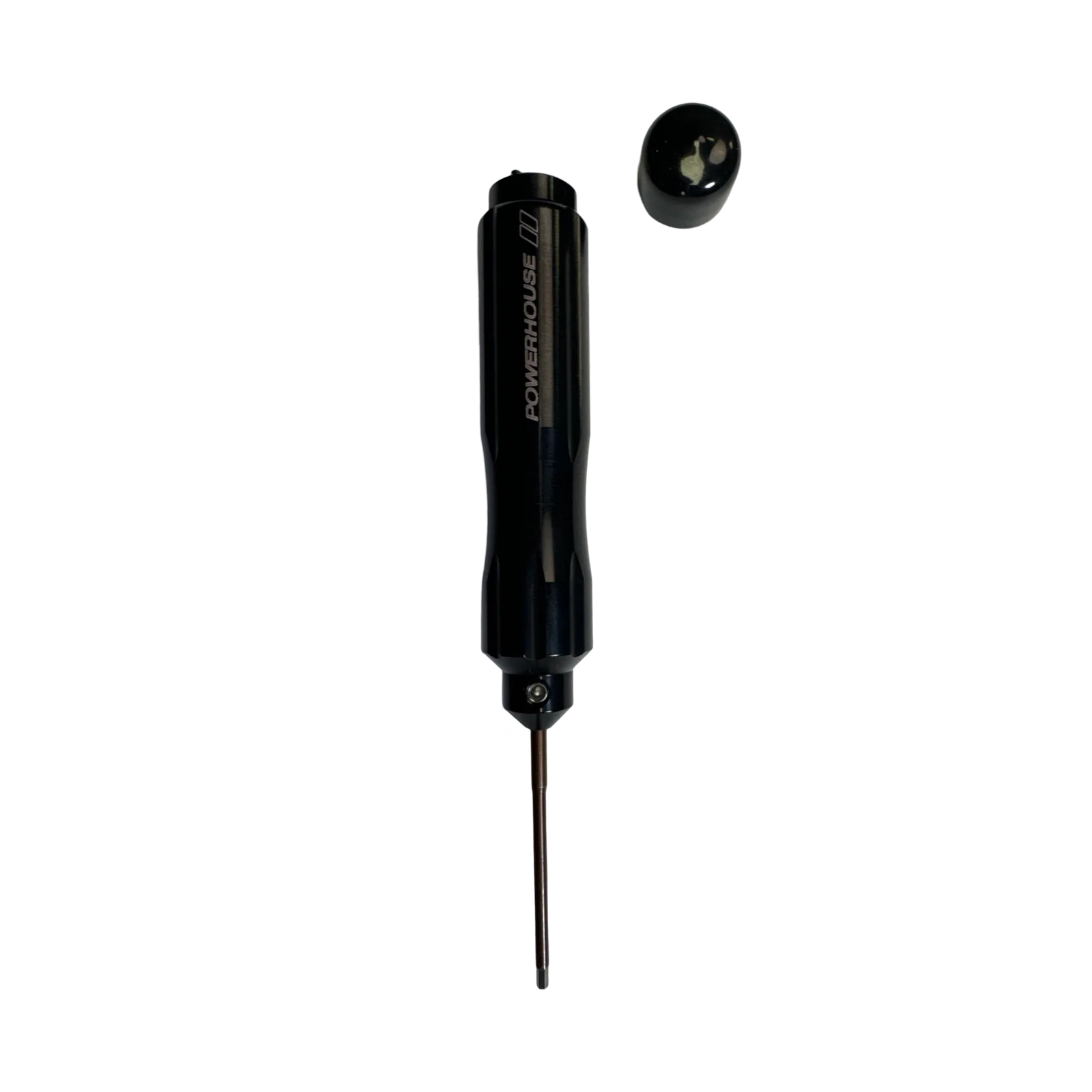

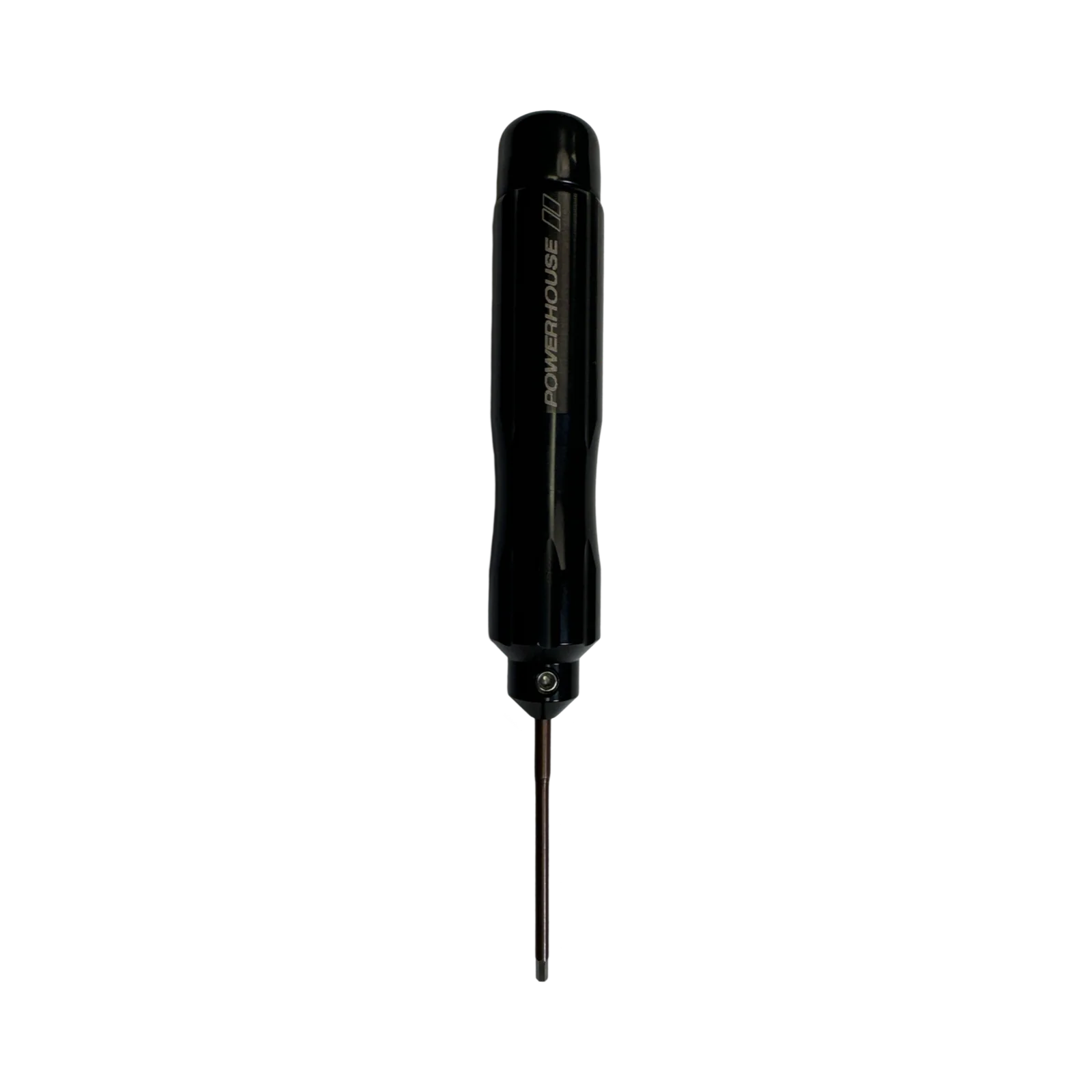

Powerhouse™ Regulator Multi-Tool
